Era 100 Pro

Name: Era 100 Pro
Brand: Sonos

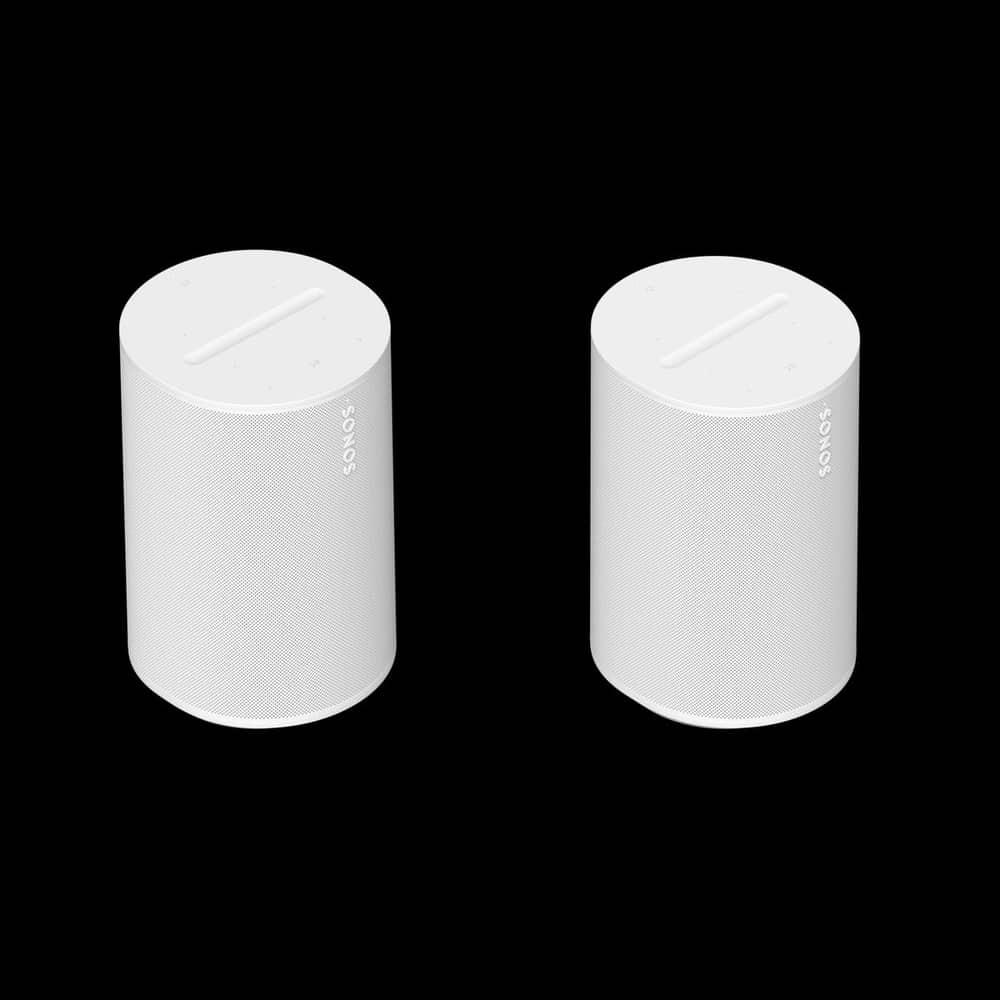

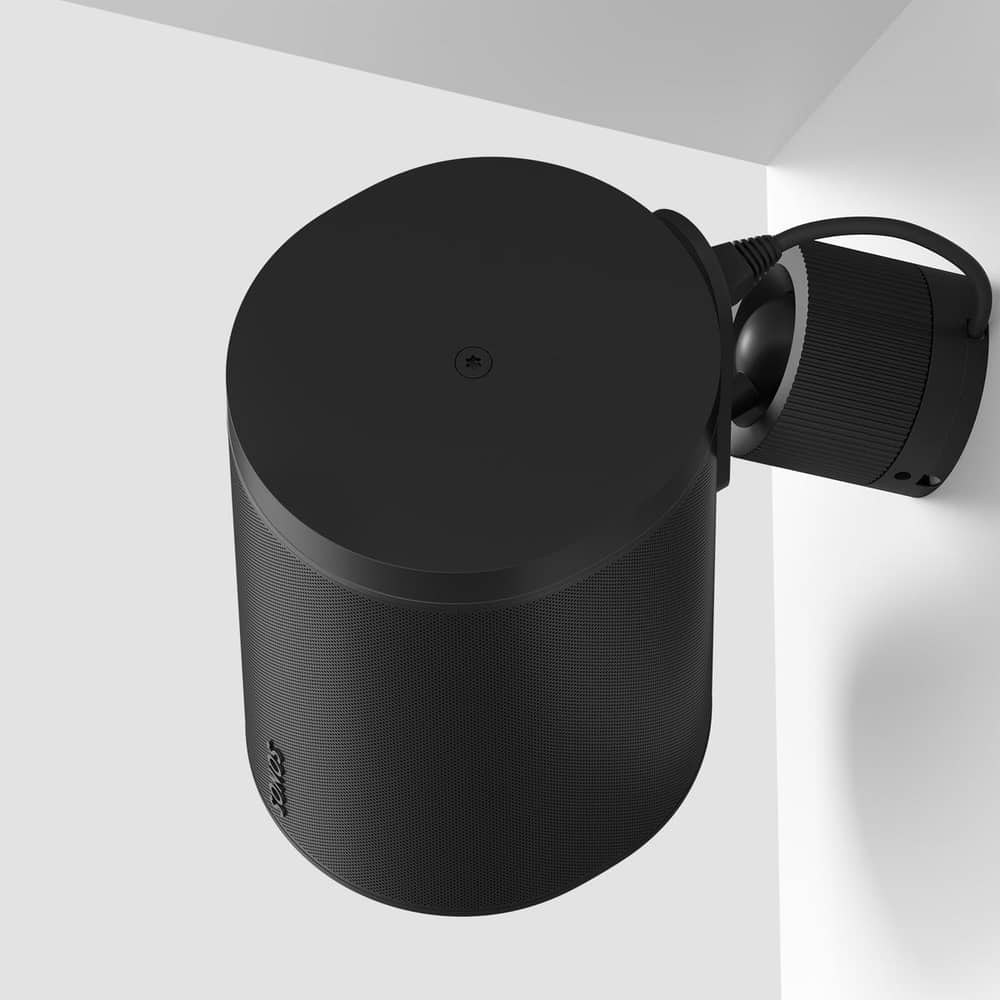

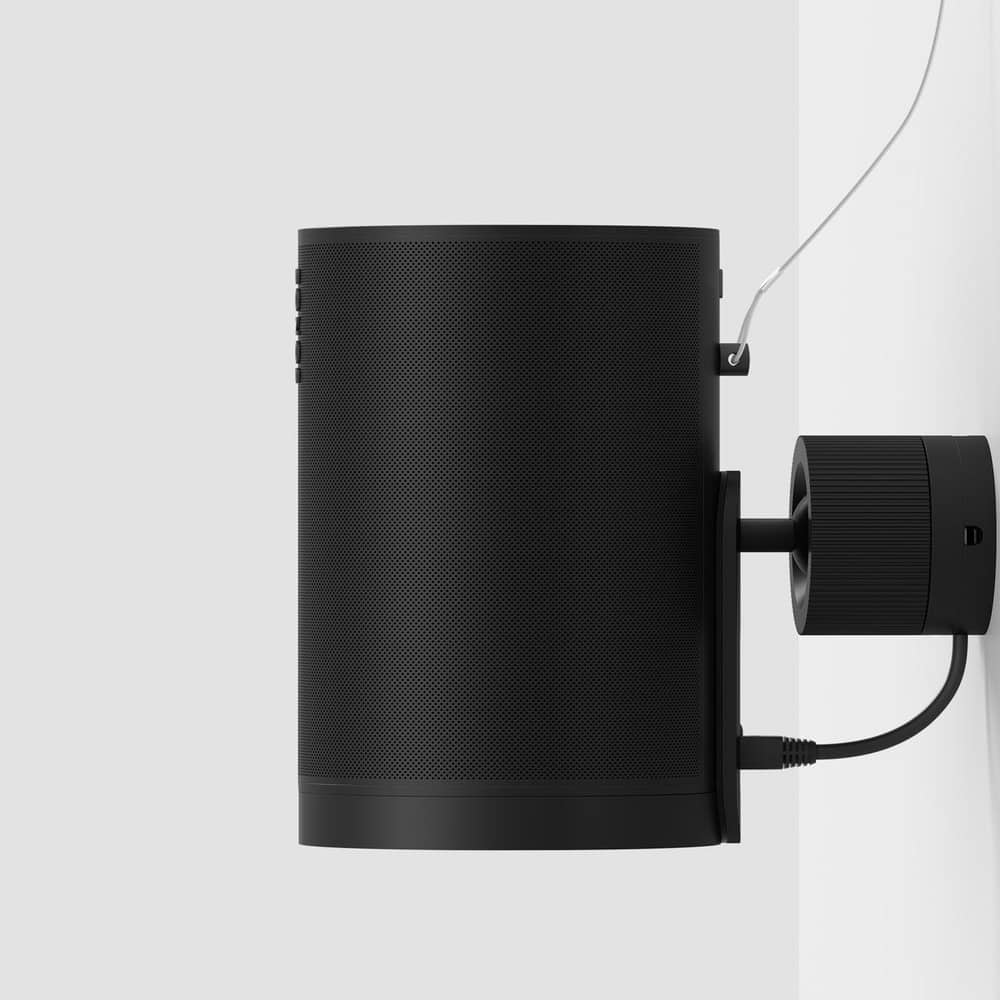

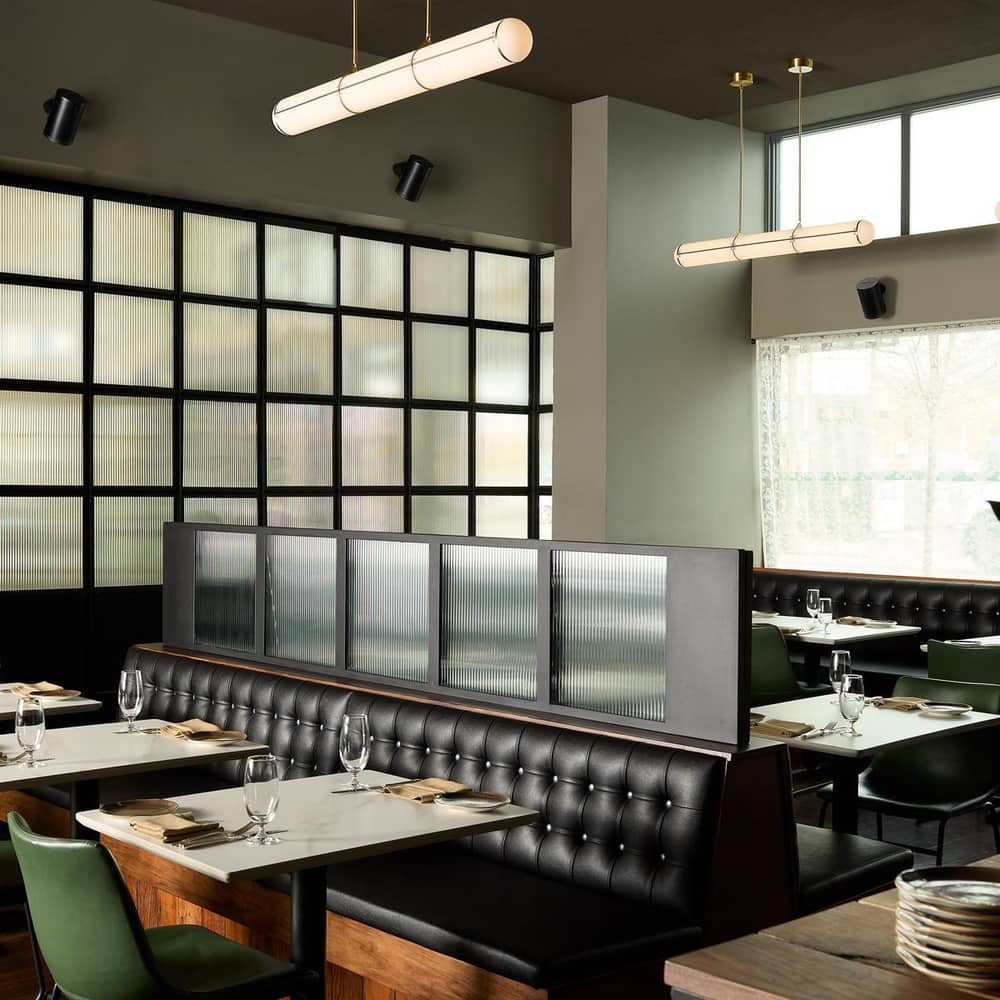

Designed for professional installation, Era 100 Pro reimagines the iconic Sonos speaker with PoE+ and zone capability. Sold as a pair and available exclusively through select Sonos partners, Era 100 Pro makes it more efficient and cost effective to create a custom audio solution for a commercial or residential spaces. Surface mounts sold separately.

Request a quoteTalk to the team that installs it in Cypress, TX. System design, screen matching and calibration included in the quote.

How we specify in Cypress

Cypress neighborhoods such as Bridgeland, Towne Lake and Fairfield mix pre-wired rooms with bare walls. Some rooms already have conduit and a media box, others need a fish run from the attic. Either way the plan starts with a wall by wall survey. For the Era 100 Pro specifically, we confirm the fit against your room in Cypress, TX before quoting the install.

Service area: Cypress, Bridgeland, Towne Lake, Fairfield, Coles Crossing, Copperfield, Jersey Village, Hockley, Waller.

Specifications

Audio

Amplifiers	Three class-D digital amplifiers precision-tuned for the speaker's unique acoustic architecture.
Low-frequency driver	One 3.5 x 4.4 in / 90.8 x 111.9 mm carbon filled-polypropylene
High-frequency drivers	Two edge-driven .63 in / 16 mm silk
Frequency Range	45 Hz-20 kHz ±3dB
Max Short-Term SPL	96dB @ 1m with PoE+
Nominal Coverage Angle	240° horizontal x 140° vertical
Microphones	The far-field microphone array uses advanced beamforming and multichannel echo cancellation for quick and accurate voice control and Trueplay tuning. Toggle off the mic switch to electrically disconnect the onboard microphones.
Adjustable EQ	Use the Sonos app to adjust bass, treble, and loudness.
Trueplay	This software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices. Learn more

Details and Dimensions

Dimensions	Height: 7.19 in (182.5 mm) Width: 4.72 in (120 mm) Depth: 5.14 in (130.5 mm)
Weight	4.48 lbs (2.03 kg)
Colors	Black, White
Finish	Matte
Threaded insert	Included optional eyebolt can be used to provide a secondary safety attachment point to the speaker.
Hook receptacle	Increases stability when speaker is paired with the Surface Mount and positioned in a non-portrait orientation
Controls	Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, mute your voice assistant, and group or ungroup Sonos products. Learn more
Bluetooth Button	Press to pair with a Bluetooth device. Learn more
Mic switch	Toggle off to electrically disconnect the onboard microphones.
LEDs	An LED on the front of the product indicates power and mute status. White LED on top of the product indicates voice assistant status. A pair of LEDs on the network port indicate power status (yellow) and network activity (green). Learn more

Power and Connectivity

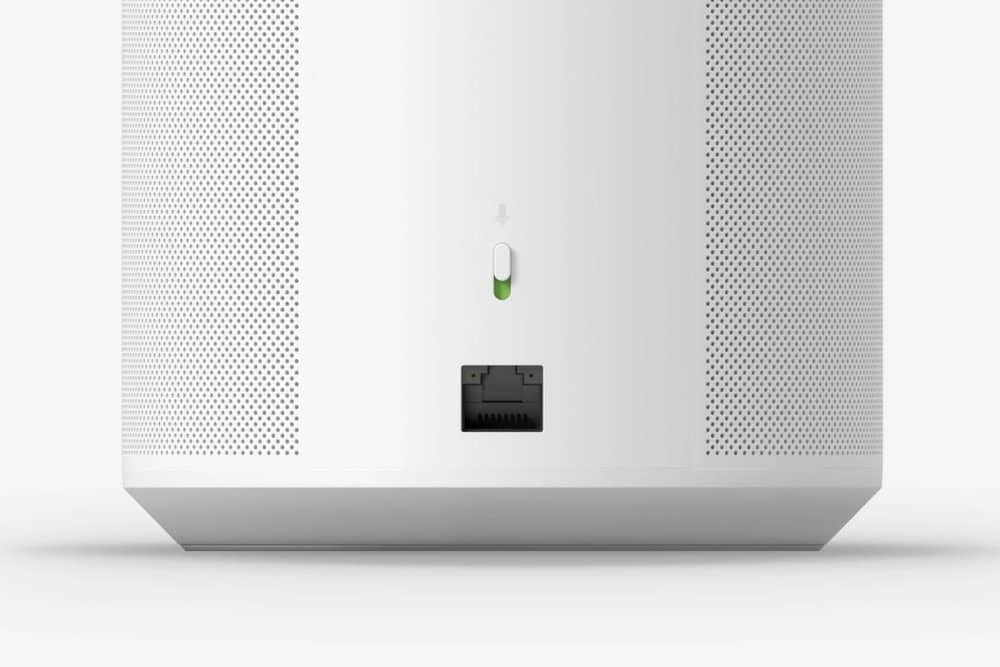

Ethernet port	100Base-T network connection and power
Power	Power over Ethernet (PoE) provides power and data over a single ethernet cable. Optimized for PoE+ and compatible with PoE.
WiFi	Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router. Learn more
Bluetooth	Bluetooth 5.0 supports audio streaming from any Bluetooth-enabled device.
CPU	Quad Core 4xA55 1.4GHz
Memory	2GB DDR4 8GB eMMC
Apple AirPlay 2	Works with AirPlay 2 on Apple devices iOS 11.4 and higher Learn more

Box Contents

2 Sonos Era 100 Pro speakers	Set Up Guide and legal/warranty information

Requirements

Internet connection	Third-party device, such as a PoE network switch or injector. See FAQ for more information.
Ethernet cable	Category 5 (CAT5) or higher
Sonos app	The latest generation of the Sonos app running on a compatible device Learn more
